Using Micro-focus X-ray to inspect alignment of Anode and Cathode for polymer Lithium Battery

Views:10     Author:Cindy     Publish Time: 2020-12-23      Origin:UNICOMP

A fully automatic inline X-ray installed in a polymer Li-Ion company to control the alignment of the lithium battery Anode and Cathode, and measure the electrode bending angle


Project Name:

Automatic Inline X-ray Inspection System


Model

Unicomp LX-1R25-110UN Inline X-ray for Polymer Li-ion



Customer Evaluation:

The X-ray machine runs stably, the measurement is accurate with high stable GR&R result, the technical services are satisfied, the overall performance of the X-ray system are superior.


Inspecting item:

Test the alignment of Anode and Cathode of the Lithium batteries and the bending angle of the electrode.


Produts pictures:


Installation Reference:



X-Ray Images:

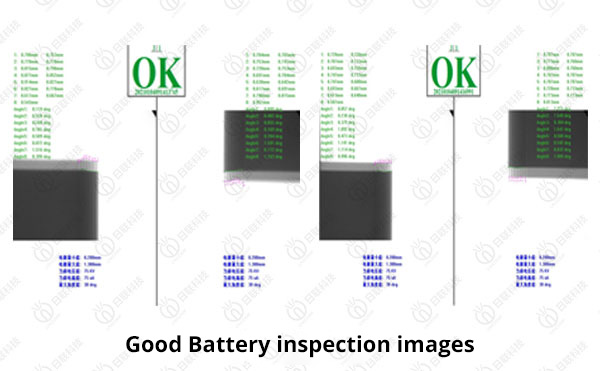

Good-Battery-inspection-images

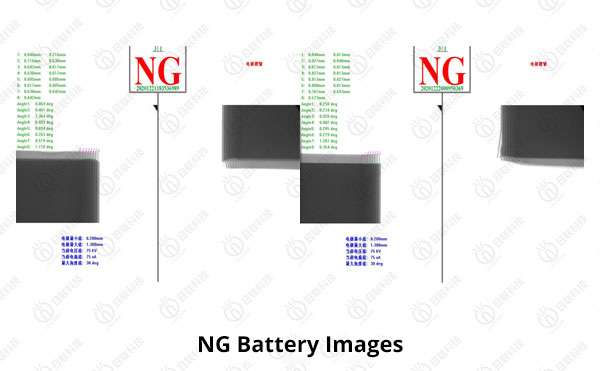

NG-Battery-Images
