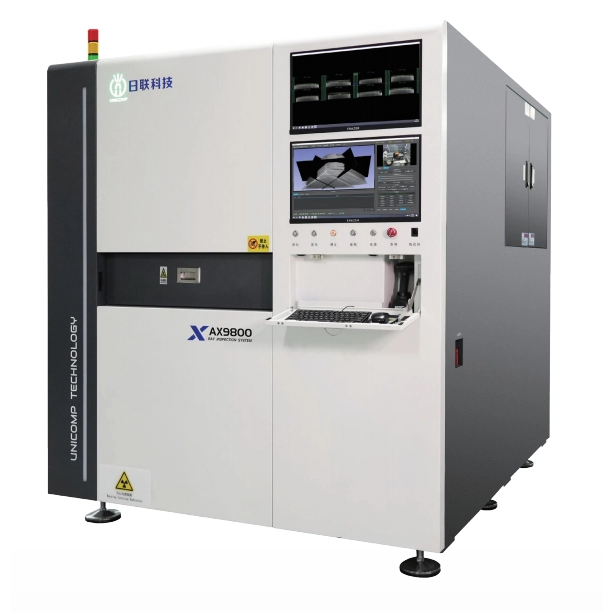

AX9800
UNICOMP
Application Fields
Functions and Feature
Off-line Programming , Offline real-time modification program
Rework Station , Barcode Reading Display + Real-time Results Display
Device Host , Offline CT intelligent detection
Data Server , Data server
Inspection Image
System Summary | |
Footprint | 1700(W)×2100(D)×2000(H)mm |
Machine Weight | 3800 kg |
Power Supply | AC 110-220V, 50/60Hz |
Plywood Packing Size | 1800(W)×2200(D)×2100(H)mm |
Packing Weight | 3250 kg |
Power | 6 kW |
Radiations | <1.0μSv/h |
Imaging System | |
X-Ray Tube | 130kV(Closed Type ,≤7μm) |
Imaging method | 2D/ 2.5D/ 3D All-in-one |
Detector | HD FPD |
Detection range | |
Inspection Sample Size | W*D*H=(80-700)*(80-250)*(5-40)mm |
Multiple Measuring Tools | Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc. |
* Specifications are subject to change without notice, All trademarks are the property of the system maker.
Dimensions and Appearance
