Prismatic Lithium-ion Battery In-line De LX-1Y60-110

  1. micro-focus tube, the image is more clear;
  2. automatic loading and unloading, more labor;
  3. the magnification can be adjusted;
  4. easy parameter setting, automatic judgment sorting bad product;
  5. user-friendly software interface, easy to get started;
  • LX-1Y60-110
  • UNICOMP

Features

  • Micro-focus, the image is more clear;

  • Turntable institutions, efficient and stable;

  • The magnification can be adjusted;

  • Easy parameter setting, automatic judgment sorting unqualified product;

  • User-friendly software interface, easy to get started;

  • Fully automated operations, reduce manpower, reduce production costs, improve production efficiency and quality consistency;

  • Software automatically determine, improve product consistency and quality assurance;

  • Comes with SPC software analysis, easy process control and quality data analysis;

  • The design fully consider the safety factors to ensure the safety of personal protection;

  • Beautiful appearance , generous, enhance the corporate reputation.

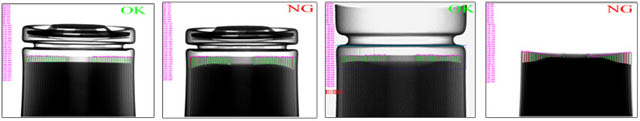

X-Ray Images

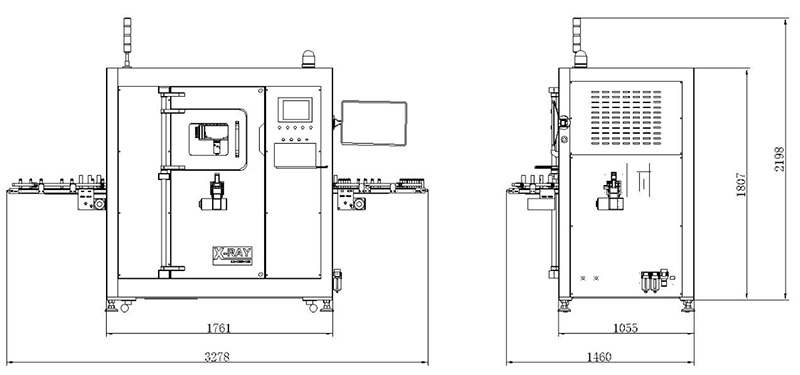

Footprint


















Parameter


System Parameters Dimension(L×W×H) 2200mmX1700mmX1750mm
Weight 3.0t
Working Environment 0~40℃
Power 3KW
Accuracy ±60μm
Operating Mode In-line
X-ray Tube Type Closed
Max.Voltage 100kv
Max.Current 0.2mA
Focal Spot Size 5um
Quantity 2
Image Detector Type Image Intensifier
Resolution 110 Lp/cm
Size 4”
Quantity 2
Applied to Spiral Power Lithium Battery
Max.Capacity 24PPM(2-point Pattern)/12ppm(4-point)
Operation Ratio ≥95%
Applicable Size Pole-center distance: 80mm
Cell hight: 60-160
Cell width: 100-150
Cell thickness: 8-15mm
Carrier size:185*165(customized)
Items Alignment Metric
Customer Cases CATL/Guoxuan/Yiwei/Yinlong(Zhuhai)
Equipment Features *Applicable to in-line X-ray detection for Power Lithium Battery of Aluminum Shell;
*Auto-shift three inspection modes, automatic docking with production lines, unattended operation;
*Precision positioning and rotating mechanism, adjustable detection angle ensures high-definition image;
*Unicomp-owned R&D of in-line lithium battery inspection software system
