UNC320
UNICOMP

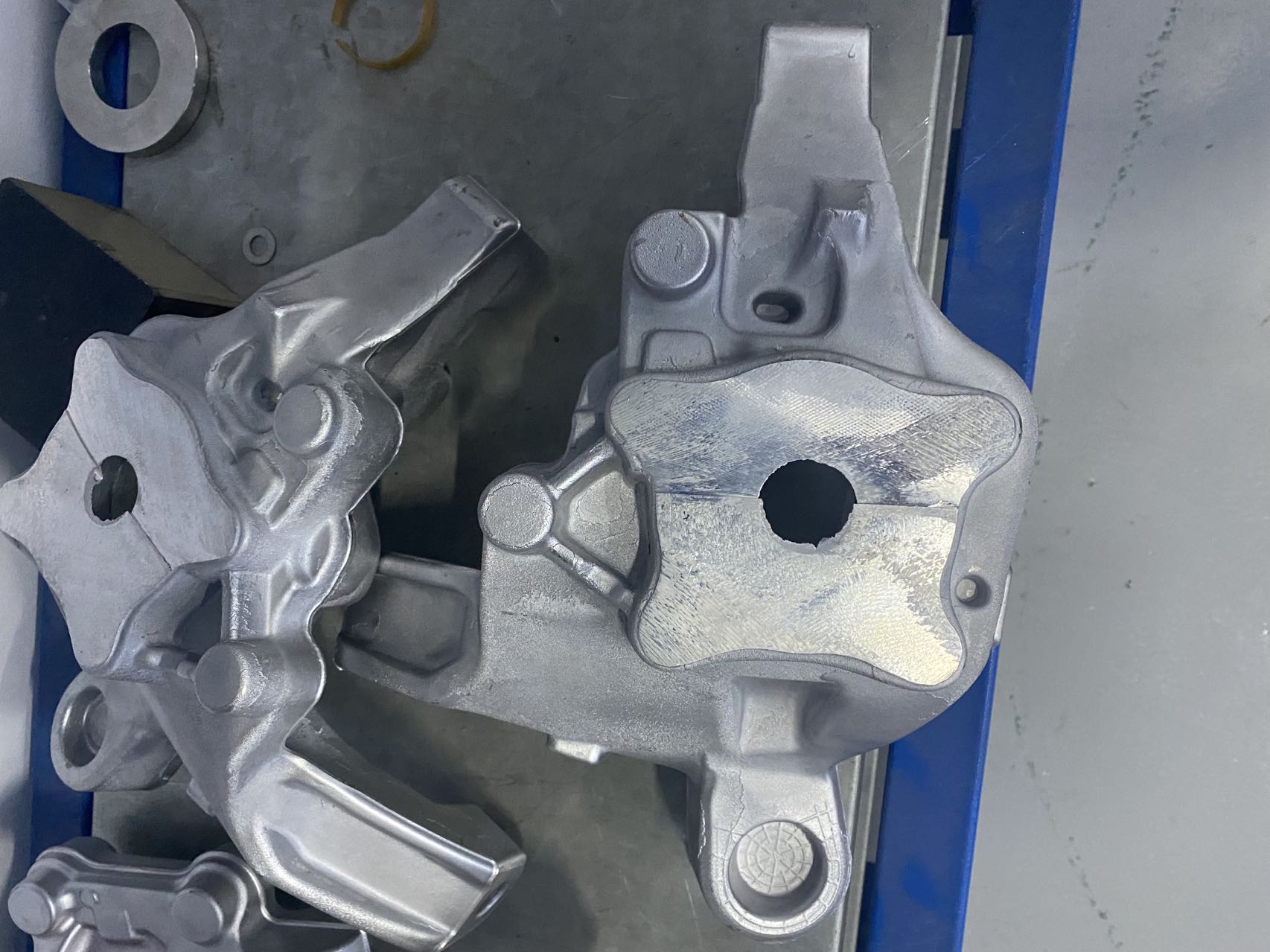

Mainly used in metal castings, hardware products, plastic products, refractory materials, resin materials, composite materials, ceramic body and welding metal parts and other small products for non-destructive testing.
Functions and Feature

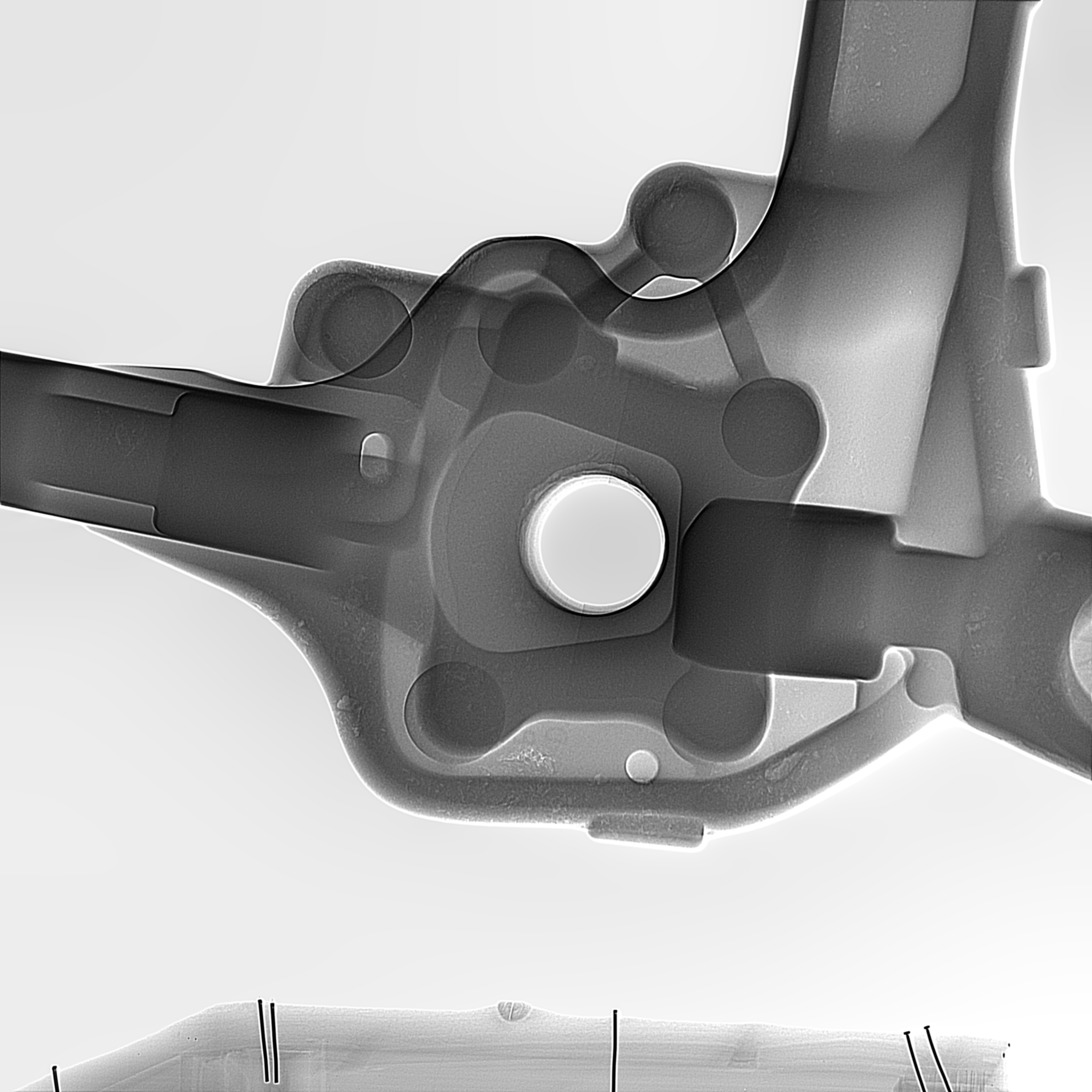

Inspection Images
System Summary | |
Footprint | 2600(W)×2784(D)×2440(H)mm |
Machine Weight | 7500 kg |
Power Supply | 380AC, 50Hz |
Power Consumption | 9kW |
X-Ray Tube | |
Tube Type | Seperated |
Power consumption | 800W/1800W |
Voltage | 320kV |
Imaging Detector | |
Detector | Amorphous silicon |
Pixel Size | 120μm |
Effective Detection Area | 307.2*244.3mm |
Pixel Matrix | 2560*2048mm |
Software | |
ASTM standard atlas can be used to comparison, view | |
| Automatically measure the porosity per unit area | |
| Distance, Angle, diameter, polygon geometry measurement | |
| CNC automatic detection | |
| Motion Control System | |
Movement Control | CNC automatic/Manual |
Max. Loading Area/Weight | φ600*800mm / 100kg |
| Detecting arm swing angle | ±15° |
| Rotation angle of the load table | ±360° |
| Other Feature | |
| Door opening | Electric double doors |
| Radiation dose | <2.5µSv/h |
| Console | Mobile operating table with lift adjustment |
| Device managementDifferent management levels | |
* Specifications are subject to change without notice, All trademarks are the property of the system maker.
Dimensions and Appearance
