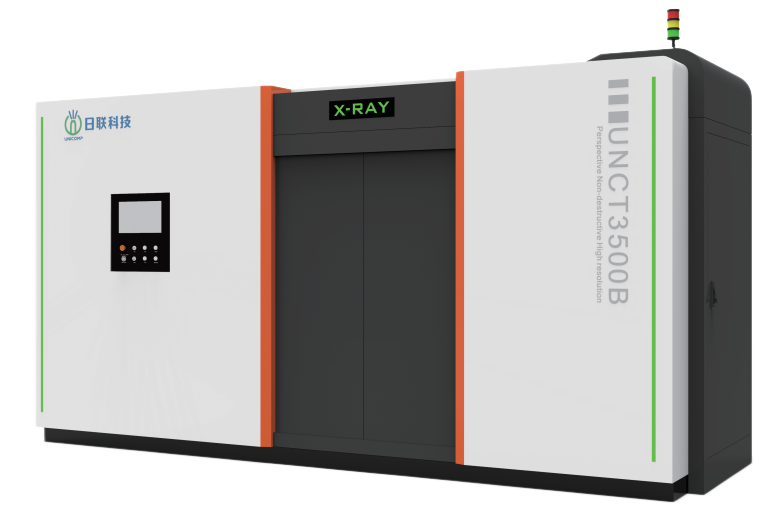

UNCT3500
UNICOMP
Function Application:
Equipment Features：
Functions: DR And CT dual imaging detection function;3D scanning, data reconstruction and analysis.
Safety: High level protection, radiation dose far lower than the national standard; multiple security measures.
Operation: User-friendly design of the control system, easy to operate, after a short training can be mastered.
High cost-effective：Specially for small product inspection, highly integrated design, complete functions,compact structure.
Technical Parameters and Specifications:
| System Summary | |
| Dimension | 5608*25087*3167mm |
| Machine Weight | 35000KG |
| Radiation dose | less than 1μSv/h |
| Power supply | 380AC/50Hz |
| Power Consumption | 15kW |
| Console | Independent Operator Console |
| X-Ray Tube | |
| X-ray tube type | Open |
| Focal spot size | ＜4mm，0.4/1mm |
| Voltage | 225kV，450kv |
| Power consumption | 500W,1500W |
| Imaging System | |
| Detector | Amorphous silicon |
| Pixel Size | 139μm,0.2mm |
| Effective dectection area | 427*427[mm],614mm |
| Pixel matrix | 3072*3072 |
| Motion Control System | |
| Max.detection range | φ600*800[mm] |
| Max.loading weight | 100KG |
| Software | |

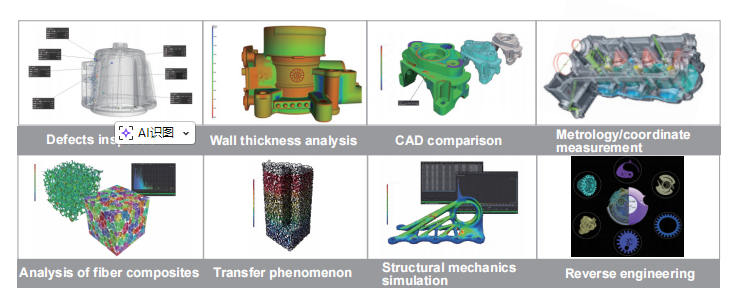

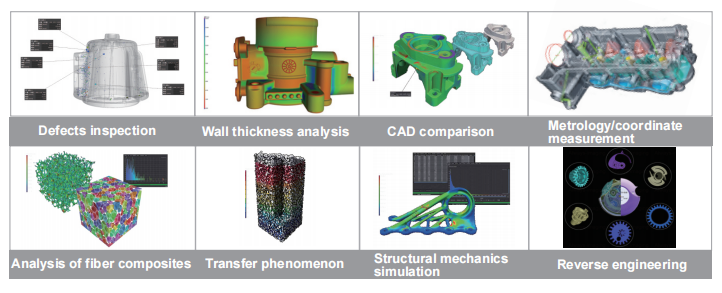

| Coordinate measurement module, design parts/objects comparison module, wall thickness analysis module, pore inclusion analysis module, fiber composite material analysis module, extended version pore/inclusion analysis module, manufacturing geometry correction module, volume grid calculation module, structural mechanics simulation module, transfer field simulation module and other functions are available. | |
| * Specifications are subject to change without notice, All trademarks are the property of the system maker. | |

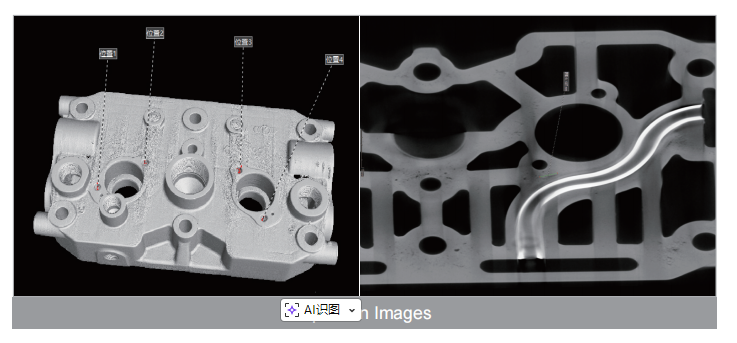

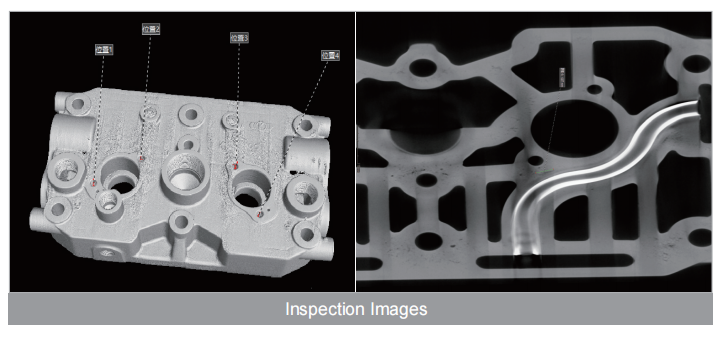

X-Ray Images:

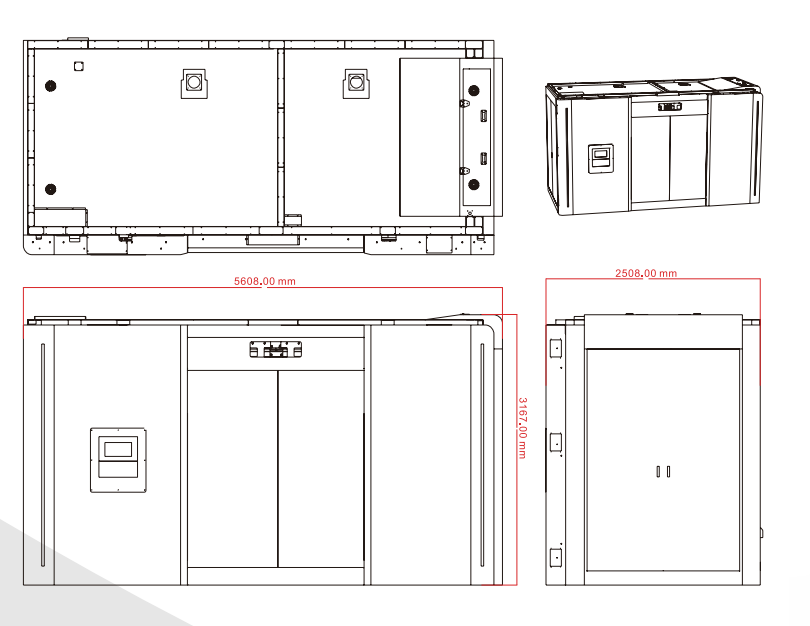

Dimensions and Appearance:
