All X-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA - CDRH standard for cabinet x-ray systems states that radiation emission will not exceed. 5millirem a /hr.2"from any external surface. Our machines (Leakage <1μSv/h) are typically 5-10 times less than the international standards

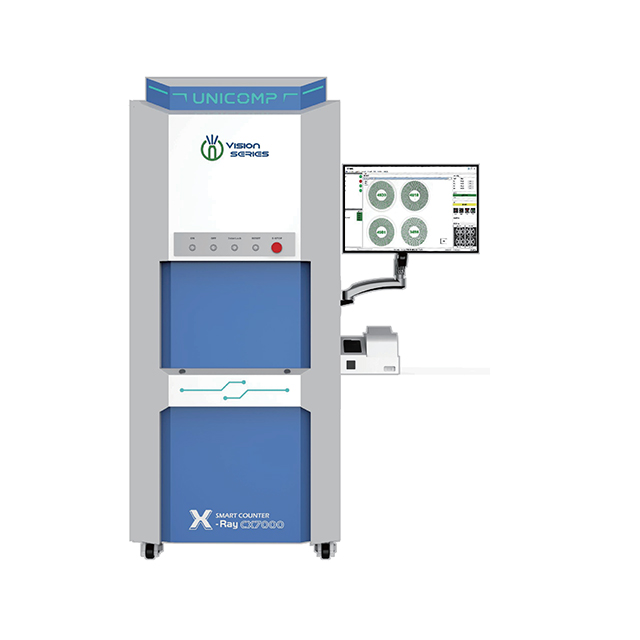

CX7000
UNICOMP
Application Fields
| Reels | Accuracy | Others Components | Accuracy |
| 01005 | 99.99% | Transistors | 99.99% |
| 0201 | 99.99% | Bulks | 99.99% |
| 0402 | 99.99% | ESD Packages | 99.9% |
| 0603 | 99.99% | Tubus | 100% |
| 0805 | 99.99% | JEDEC TRAY | 100% |
| 1206 | 99.99% | Other Resistance & Capacity | 99.99% |
Features
X-ray Images
Technical Specifications
| System Summary | |||
| Footprint | 800(W)×800(D)×1900(H)mm | Plywood Packing Szie | 1150(W)×1110(D)×2150(H)mm |
| Machine Weight | 780 kg | Packing Weight | 980 kg |
| Power Spupply | AC 110/220V, 50/60Hz | Power Consumption | Max. 1.5kW |
| X-Ray Tube | |||
| Tube Type | Sealed | Current | Max. 700 μA |
| Voltage | 80 kV | Focus Spot Size | 0.03 mm |
| Imaging System | |||
| Detector | Flat Panel Detector (FPD) | Pixel Size | 139 μm |
| Effective Inspection Area | 430*430mm | Frame Rates | 2 fps |
| Pixel Matrix | 3072*3072 pixel | AD Conversion | 16 bits |
| Inspection Ability | Industrial PC | ||
| Tape & Reel size | 7’’-17’’ | Monitor | 24’’ FHD LCD Display |
| Scan Height | ≤ 80mm | System OS | Windows 10 64bit |
| Inspection Min. Component | 01005 | Hard Disk | 256G (SSD) + 1T (HDD) |
| Inspection Accuracy | 99.99% | RAM | 16 GB |
| Inspection Speed | ＜10s/Tape & Reel (7’’-17’’) ＜10s (7’’*4 Tape & Reel ) | CPU Model | Intel i7 Processor |
| Support Connection with MES, ERP and WMS Intelligent Storage System. | |||
| Other Features | |||
| Door Open | Auto-door, Anti-Pinch | Feeding Method | Manual |
| Radiation Monitoring | Safety Protection, Real-time Monitoring of Radiation | X-Ray Safety | ≤0.5μSv/h (Meets All International Standards) |
| Accessories | Barcode scanner, Printer, Portable Radiation Meter,Finger-Print Recognition | Authority Management | Fingerprint Access Management System, and Support Password Accessing. |

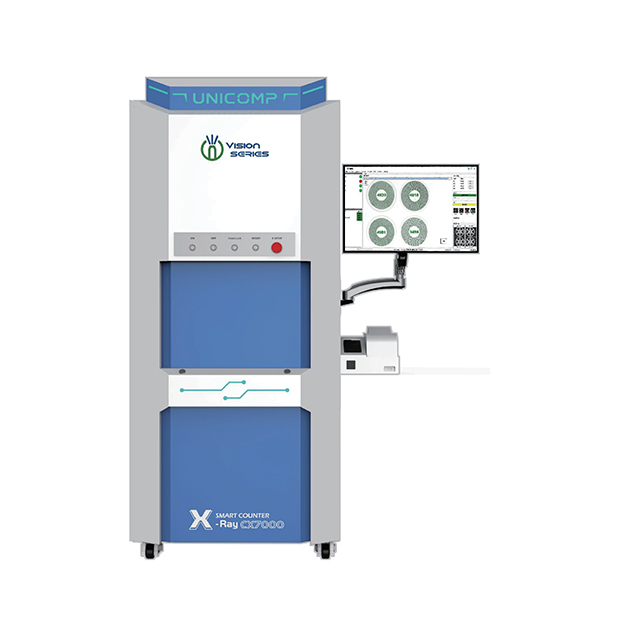

Dimensions and Appearance
Application Fields
| Reels | Accuracy | Others Components | Accuracy |
| 01005 | 99.99% | Transistors | 99.99% |
| 0201 | 99.99% | Bulks | 99.99% |
| 0402 | 99.99% | ESD Packages | 99.9% |
| 0603 | 99.99% | Tubus | 100% |
| 0805 | 99.99% | JEDEC TRAY | 100% |
| 1206 | 99.99% | Other Resistance & Capacity | 99.99% |
Features
X-ray Images
Technical Specifications
| System Summary | |||
| Footprint | 800(W)×800(D)×1900(H)mm | Plywood Packing Szie | 1150(W)×1110(D)×2150(H)mm |
| Machine Weight | 780 kg | Packing Weight | 980 kg |
| Power Spupply | AC 110/220V, 50/60Hz | Power Consumption | Max. 1.5kW |
| X-Ray Tube | |||
| Tube Type | Sealed | Current | Max. 700 μA |
| Voltage | 80 kV | Focus Spot Size | 0.03 mm |
| Imaging System | |||
| Detector | Flat Panel Detector (FPD) | Pixel Size | 139 μm |
| Effective Inspection Area | 430*430mm | Frame Rates | 2 fps |
| Pixel Matrix | 3072*3072 pixel | AD Conversion | 16 bits |
| Inspection Ability | Industrial PC | ||
| Tape & Reel size | 7’’-17’’ | Monitor | 24’’ FHD LCD Display |
| Scan Height | ≤ 80mm | System OS | Windows 10 64bit |
| Inspection Min. Component | 01005 | Hard Disk | 256G (SSD) + 1T (HDD) |
| Inspection Accuracy | 99.99% | RAM | 16 GB |
| Inspection Speed | ＜10s/Tape & Reel (7’’-17’’) ＜10s (7’’*4 Tape & Reel ) | CPU Model | Intel i7 Processor |
| Support Connection with MES, ERP and WMS Intelligent Storage System. | |||
| Other Features | |||
| Door Open | Auto-door, Anti-Pinch | Feeding Method | Manual |
| Radiation Monitoring | Safety Protection, Real-time Monitoring of Radiation | X-Ray Safety | ≤0.5μSv/h (Meets All International Standards) |
| Accessories | Barcode scanner, Printer, Portable Radiation Meter,Finger-Print Recognition | Authority Management | Fingerprint Access Management System, and Support Password Accessing. |
Dimensions and Appearance
