UNOS-U160B
UNICOMP

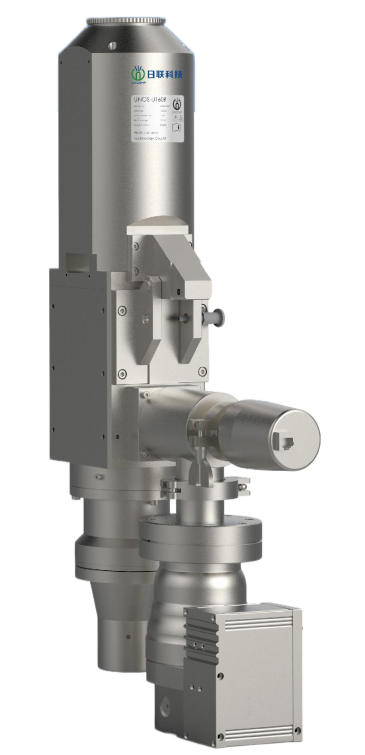

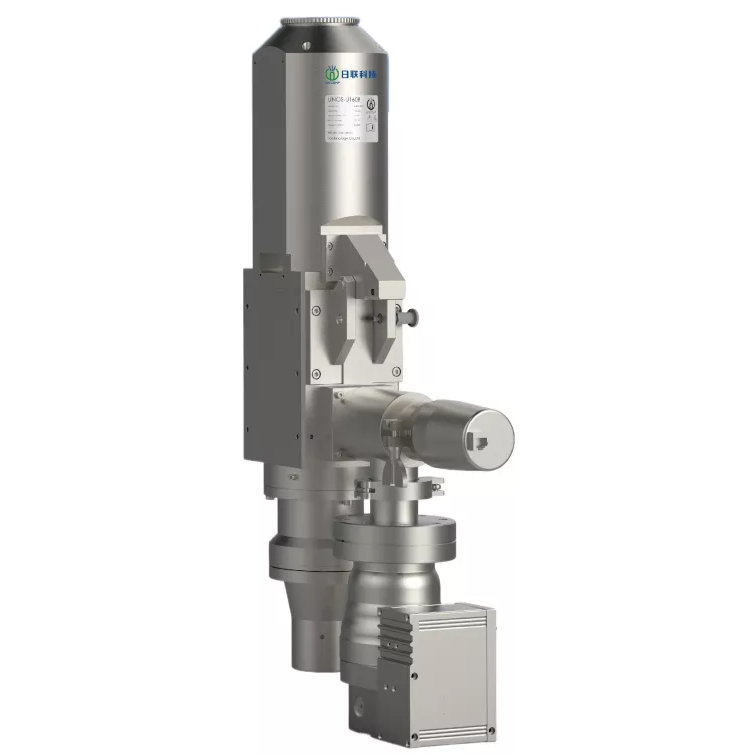

UNOS-U160B is a open tube 160 kV Microfocus X-Ray Source using hot cathode technology, digital control and 100% domestic raw materials.It has the advantages of small focal spot size, high magnification, stable X-Ray emission, higher output power and strong penetration ability.It is very suitable for imaging applications with high resolution and high penetration.
Key Parameter
Max. Tube Voltage: 160kV
Max. Tube Power: 64W
Min. Focus Object Distance(FOD): ＜500μm
Beam Angle: ＞170°
Applications
Integrated Circuit Package
SMT, PCBA Electronic Manufacturing
IGBT Substrate / Module
EV Battery
Metal parts inspection
Plastic parts inspection
Specification
| HV Range | 30-160 kV |
| Max. Tube Current | 1000 μA |
| Maximum Tube Power | 64W |
| Maximum Target Power | 15W |
| Min.Focus Object Distance | ＜500μm |
| Microfocus Tube W,H,L | 163*339*615mm |
| Microfocus Tube Weight | ＜30kg |
| Beam Angle | ＞170° |
| Target | High power target |
| HVPS Weight | 75kg |
| Control Cabinet W,H,L | 910*1300*510mm |
| Communication Mode | TCP/IP |

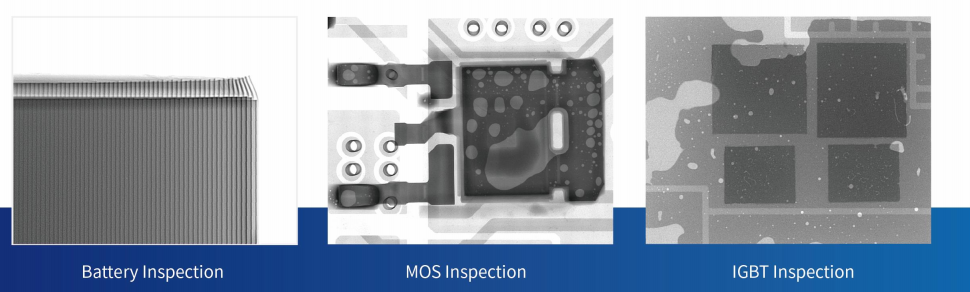

X-ray Images
