UNMS-U180B
UNICOMP

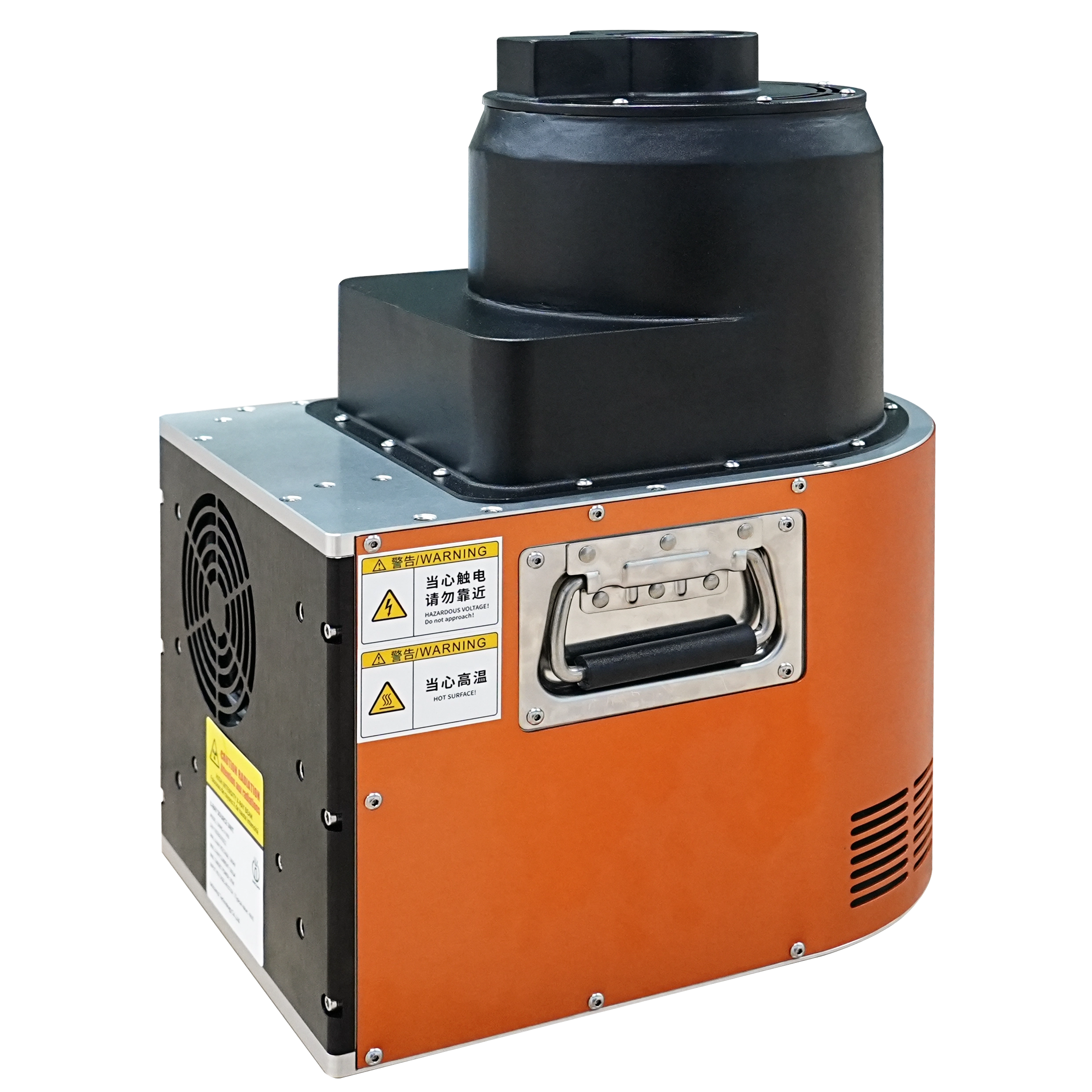

UNMS-U180B is a closed tube 180 kV Microfocus X-Ray Source using hot cathode technology, digital control and 100% domestic raw materials.It has the advantages of small focal spot size, high magnification, stable X-Ray emission, higher output power and strong penetration ability.It is very suitable for imaging applications with high resolution and high penetration.
Key Parameter
Max. Tube Voltage: 180kV
Max. Tube Power: 90W
Min. Spot Size: ≤8μm
Beam Angle: 94±3°
Applications
Integrated Circuit Package
SMT, PCBA Electronic Manufacturing
IGBT Substrate / Module
EV Battery
Metal parts inspection
Plastic parts inspection
Specification
| Operating Tube Voltage Range | 40-180 kV |
| Operating Tube Current Range | 0-500 μA |
| Maximum Tube Power | 90W |
| Input Voltage (DC) | 48±0.5V |
| Power Consumption | Less than 200W |
| Window Material/Thickness | Be/0.50mm |
| Window Diameter | 40±0.50mm |
| Beam Angle | 94±3° |
| Target Material | Tungsten |
| FOD | 17.4±0.5mm |
| Weight | Approx. 34kg |
| Safty Interlock | External Short-circuit |
| Control Connection | Interface: RS-232 (9-pin socket) |
| Operating Mode | Continuous |

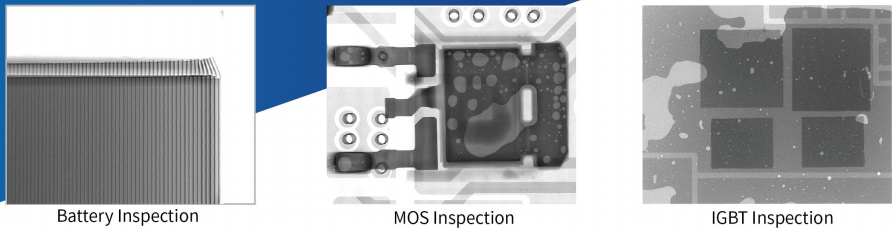

X-ray Images

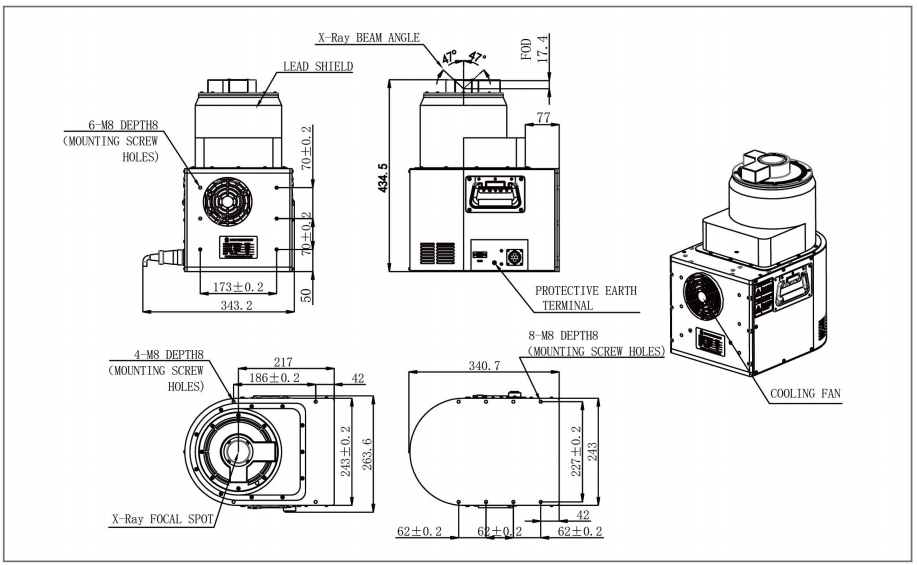

Footprint
