UNMS-U90D
UNICOMP

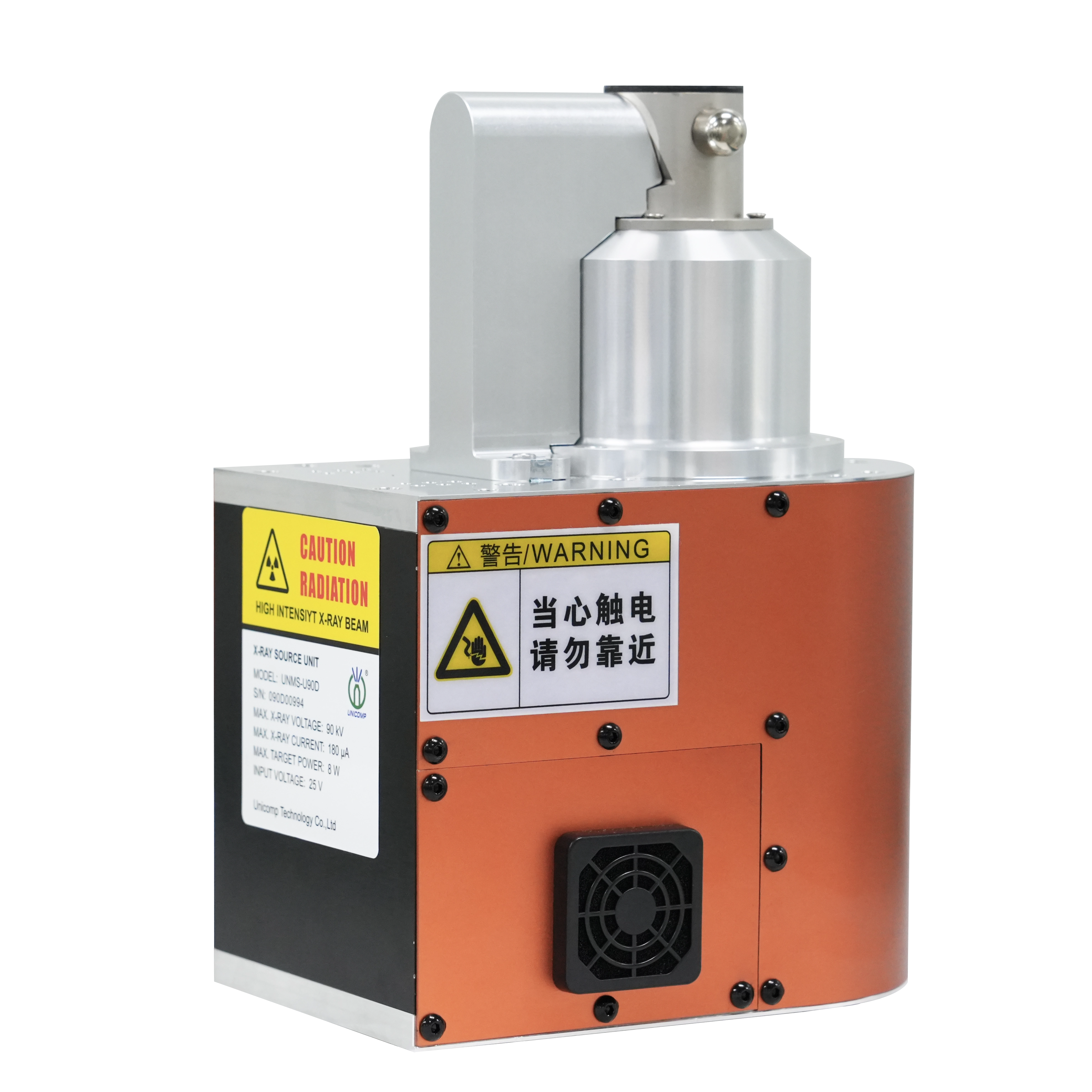

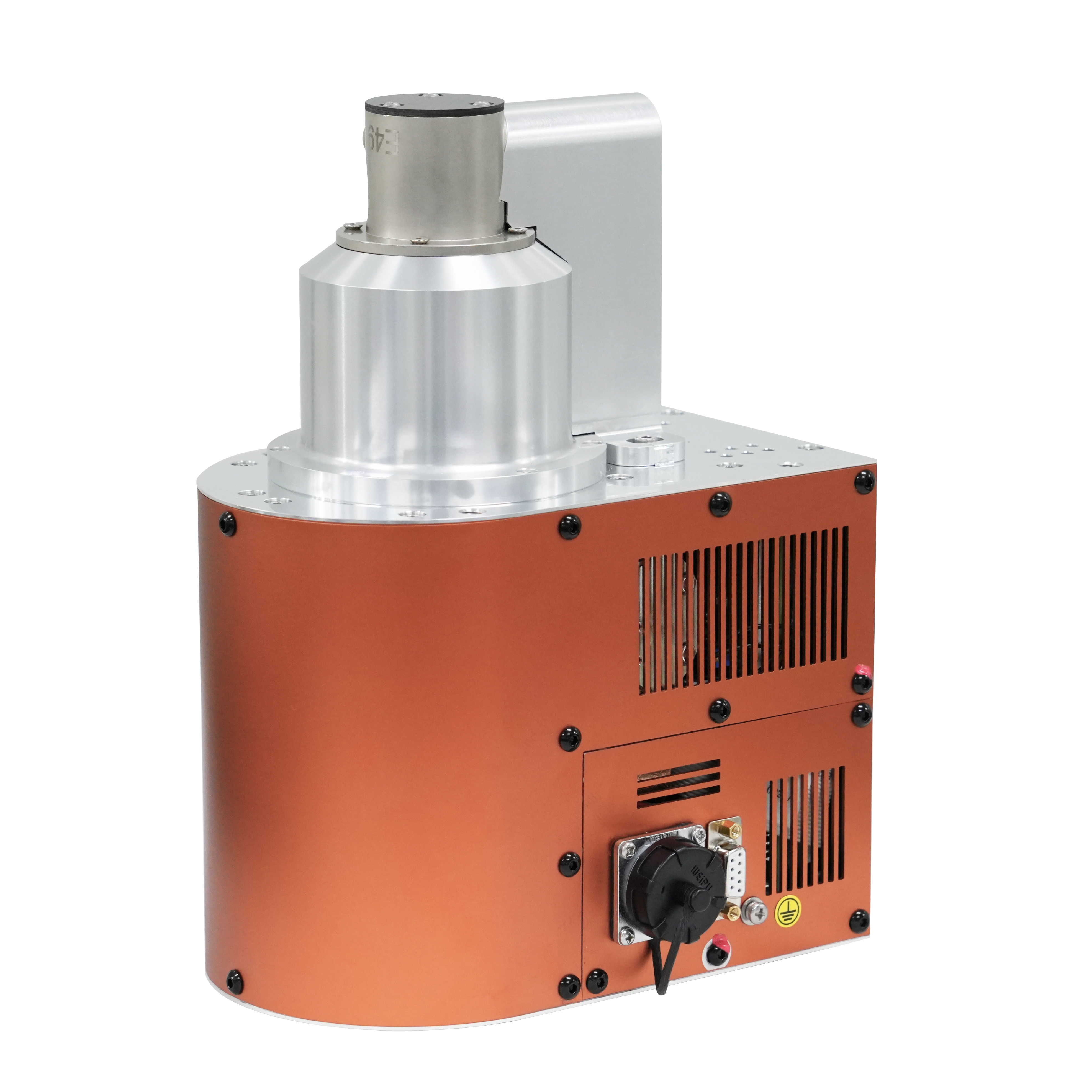

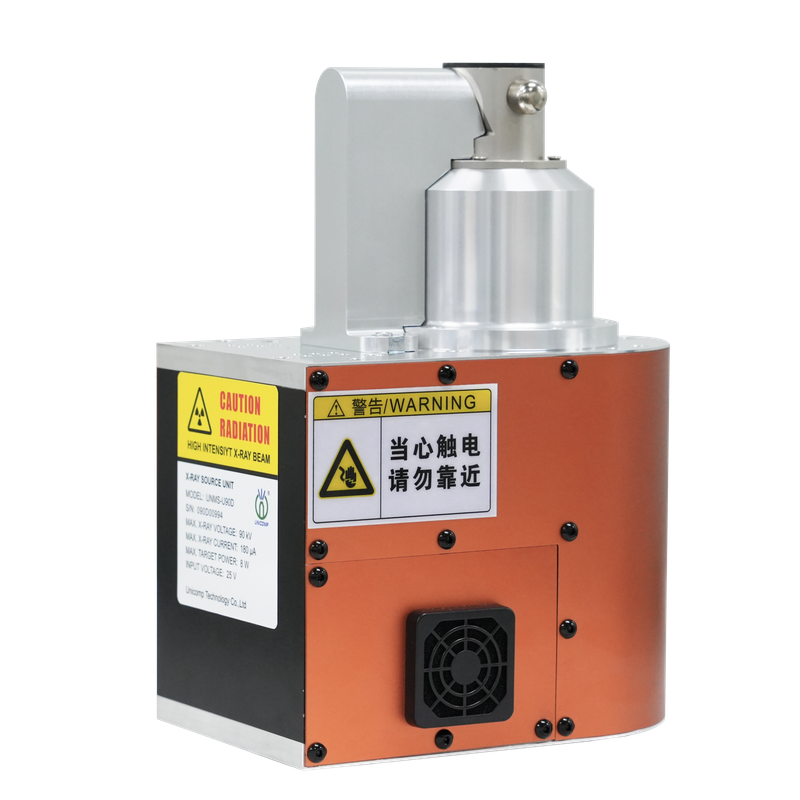

UNMS-U90D is an integrated small volume closed tube 90kV Microfocus X-Ray Source with hot cathodetechnology, small focal spot size, high magnification and stable X-Ray emission. It can penetrate electronic components, PCBs, assembly circuit boards, battery cells, etc. and obtain clear and high-quality internal structure images.
Key Parameter
Max. Tube Voltage: 90kV
Max. Tube Power: 8W
Min. Spot Size: ≤5μm
Beam Angle: 45±3°
Applications
PCB and semiconductor device
SMT, PCBA electronic manufacturing
Wire harness and connector
3C consumer battery
Specifications
| Operating Tube Voltage Range | 20-90kV |
| Operating Tube Current Range | 0-180μA |
| Maximum Tube Power | 8W |
| Input Voltage(DC) | 25±0.5V |
| Power Consumption | ＜35W |
| Window Material/Thickness | Be/0.1mm |
| Window Diameter | 8mm |
| Beam Angle | 45°±3° |
| Target Material | Tungsten |
| FOD | 10.2±0.2mm |
| Weight | Approx. 5.5kg |
| Safty Interlock | External Short-circuit |
| Control Connection | Digital Control |
| Operating Mode | Continuous |
