| Place of Origin: | China |
| Brand Name: | UNICOMP |
| Certification: | CE, FDA |
| Model Number: | UNX3015-S |
| Lead Time: | 15 days |
UNX3015-S
UNICOMP
Features
Easy to Operate: one button start&stop, optional default product
Provide high precision automatic foreign material detection, It can effectively detect metal, ceramic, glass, bone, shell and other foreign materials in the product
Monitoring, controlling, and improving procedures and outputs in manufacturing with SPC report
With deep learning of AI, the detection sensitivity reaches the industry's highest Intelligent algorithm standard

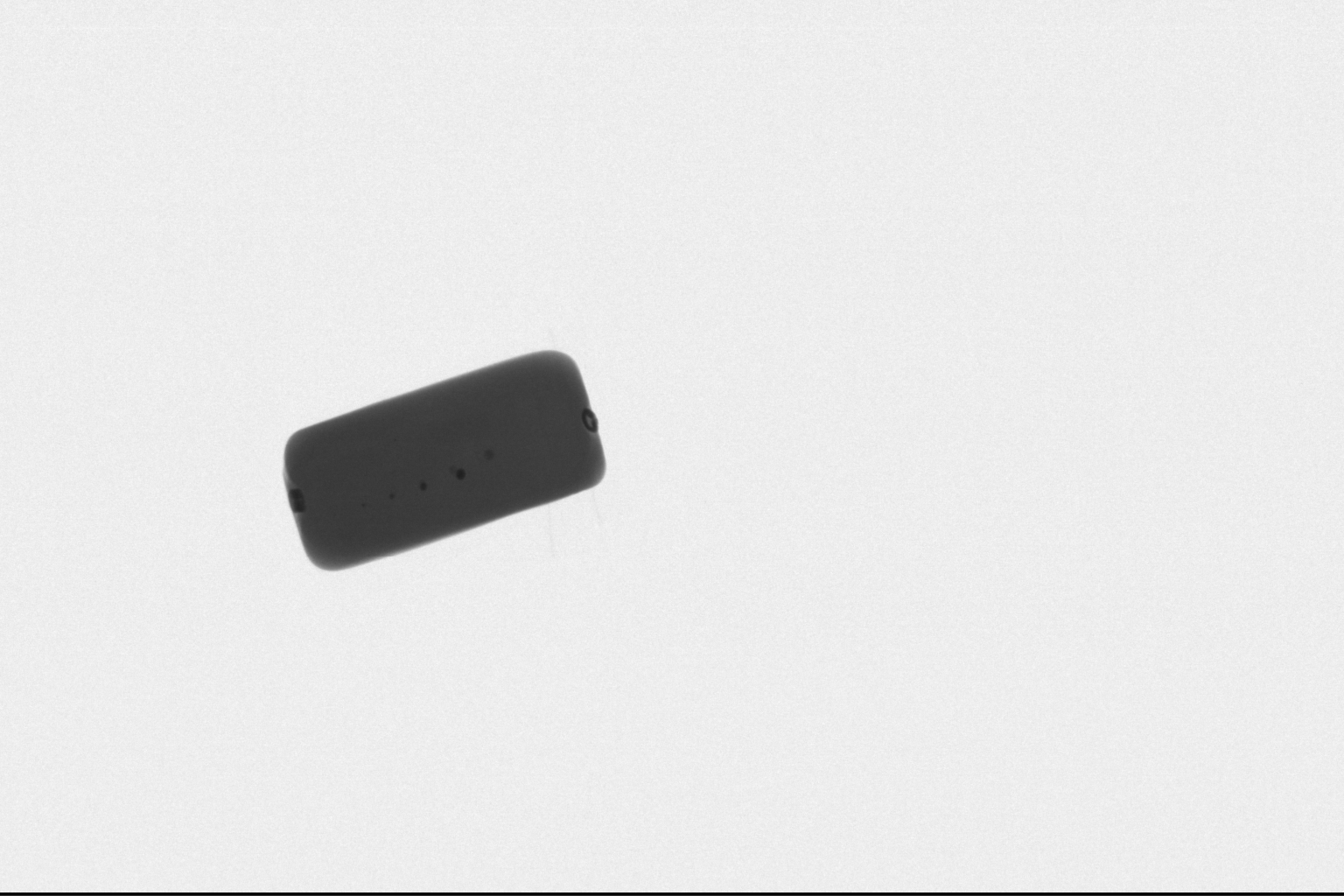

X-ray images
Specificaitions
Specifications | Dimension | 960(W)X870(D)X1900(H)mm |
Machine weight | 350kg | |
X-ray tube | 80kV/210W | |
Power Supply | AC 110/220V, 50/60Hz | |
Max. Loading weight | 5kg | |
Detector | 0.2mm/0.4mm/TDI | |
Channel size | 300mm(W)*150mm(H) | |
Conveyor Speed | 10-70m/min, 10 - 40 m/min（heavy load） | |
Port | 1*Lan, 2*USB | |
Operating Temperature | -10°C - 40°C ，30% -90% RH, non-condensing | |
| Reject Solutions | conveyer stop, air jet, swiping arm, pushing rod, retracting belt, flipper., etc. | |
| Human Machine Interface | 15.6" touchscreen, Windows 10 operating system | |
Other | IP rating | Conveyor: IP66, Others: IP65 |
X-Ray Safety | <1μSv/h |
Inspection Area
Features
Easy to Operate: one button start&stop, optional default product
Provide high precision automatic foreign material detection, It can effectively detect metal, ceramic, glass, bone, shell and other foreign materials in the product
Monitoring, controlling, and improving procedures and outputs in manufacturing with SPC report
With deep learning of AI, the detection sensitivity reaches the industry's highest Intelligent algorithm standard

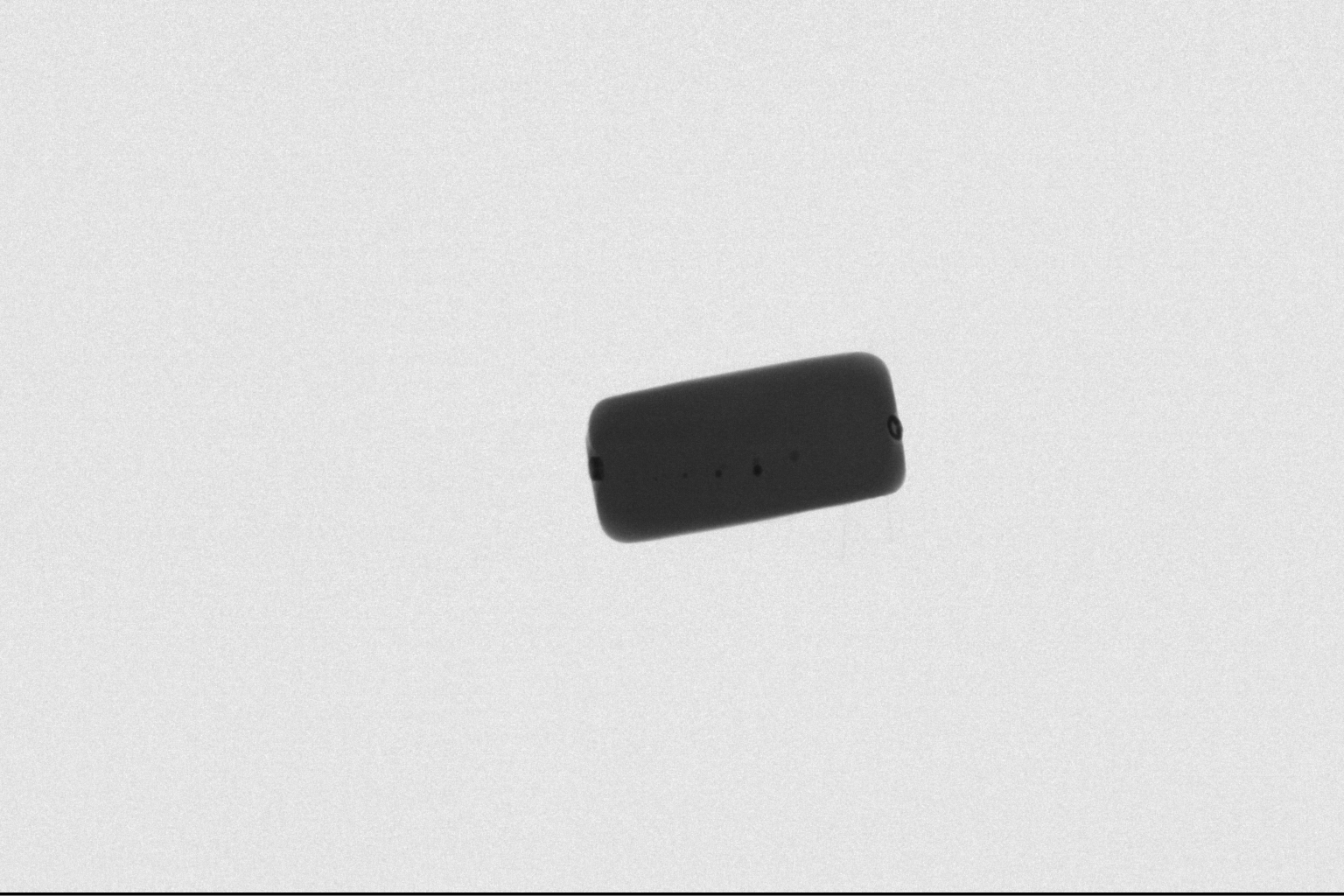

X-ray images
Specificaitions
Specifications | Dimension | 960(W)X870(D)X1900(H)mm |
Machine weight | 350kg | |
X-ray tube | 80kV/210W | |
Power Supply | AC 110/220V, 50/60Hz | |
Max. Loading weight | 5kg | |
Detector | 0.2mm/0.4mm/TDI | |
Channel size | 300mm(W)*150mm(H) | |
Conveyor Speed | 10-70m/min, 10 - 40 m/min（heavy load） | |
Port | 1*Lan, 2*USB | |
Operating Temperature | -10°C - 40°C ，30% -90% RH, non-condensing | |
| Reject Solutions | conveyer stop, air jet, swiping arm, pushing rod, retracting belt, flipper., etc. | |
| Human Machine Interface | 15.6" touchscreen, Windows 10 operating system | |
Other | IP rating | Conveyor: IP66, Others: IP65 |
X-Ray Safety | <1μSv/h |
Inspection Area
