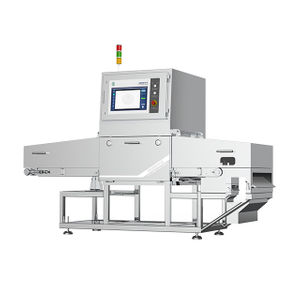

Bagged Food X-ray Foreign Object Detection Equipment UNX4015N

UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.

Place of Origin: China
Brand Name: UNICOMP
Certification: CE, FDA
Model Number: UNX4015N
Lead Time: 15 days
Availability:
  • UNX4015N

  • UNICOMP

Application


UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.


Features

  • Easy to Operate: one button start&stop, optional default product

  • Provide High precision automatic foreign detection, It can effectively identify metal, ceramic, glass, bone, shell and other malignant foreign matter in the product

  • Sensitivity adjustment, alarm management, powerful data statistics report

  • The detection sensitivity reaches the industry's highest standard Intelligent algorithm based on in-depth learning of AI

  • Tool free for conveyor belt and protective curtains


X-ray images

UNX4015N-xray


Specificaitions

Equipment
Features

Dimension

1168(W)X985(D)X1510(H)mm

Machine weight

500kg

X-ray tube

80-120kv/210-480W

Power Supply

AC 110/220V, 50/60Hz

Max. Loading weight

10kg

X-ray detector

Diode array with 0.4mm resolution

Channel size

400mm(W)*150mm(H)

Conveyor Speed

10-60M/min

Heavy load Conveyor Speed

10-40M/min

Operating Range

10°C to 40°C (50°F to 104°F),30% to 90% relative humidity non-condensing

Capability

Detection Accuracy

SUS BALL≥ø0.3mm

SUS wire≥ø0.2*2mm

Glass ball≥ø1.0mm

Ceramic ball≥ø1.0mm

System Computer

Communications

1*LAN,2*USB

Industrial PC

17"LCD touch screen;Windows 10

Optional configuration

Rejector

Sound-Light alarm,                      flipper,dropout,air jet,

Pusher,chute,shuttle

Other

Ingress protection

Conveyor: IP66, Others: IP65

X-Ray Safety

<1μSv/h


Dimensions and Appearance

UNX4015N-footprint
