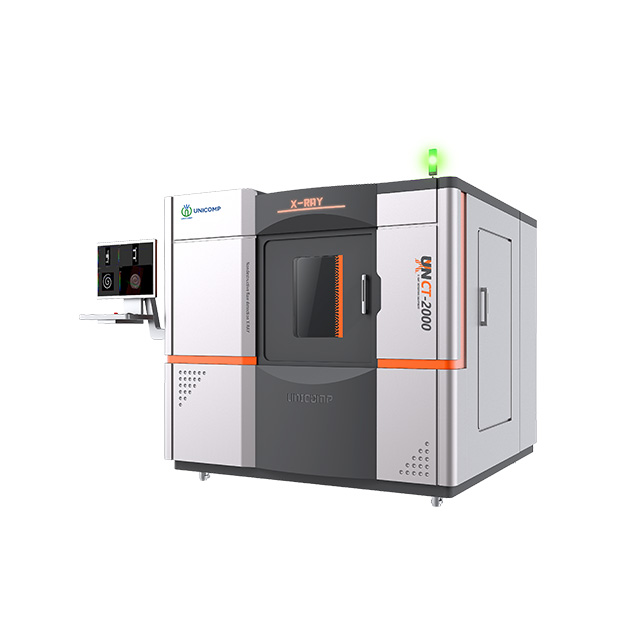

UNCT2000
UNICOMP
Function Application:
Equipment Features：
Powerful Function: DR and CT dual system, Tomography, 3D rebulid and analysing.
High Safety: Multiple safety protection measurements, meets all the international safety standards.
User Friendly: User friendly system, easy operation.
High Precision Inspection: High-precision mechanical transmission system, advanced image processing technology
Technical Specifications:
| System Summary | |
| Footprint | 2635(W)×2114(D)×2069(H)mm |
| Machine Weight | ≈ 6000 kg |
| X-Ray Safety | <1μSv/h (Meets All International Standards) |
| Power Supply | AC 380V, 50/60Hz |
| Power Consumption | 9 kW |
| Console | Highly intergrated design |
| X-Ray Tube | |
| Tube Type | Separated Type |
| Focus Spot Size | < 4μm |
| Voltage | 0~225kV (Adjustable) |
| Tube Consumption | 320W |
| Imaging System | |
| Detector | A-Si |
| Pixel Size | 139μm |
| Effective Detection Area | 427*427mm |
| Pixel Matrix | 3072*3072 |
| Motion Control System | |
| Max. Inspection Area | ф300*500mm |
| Max. Loading Weight | 30 kg |
| Software | |
| Coordinate measurement module, design parts/objects comparison module, wall thickness analysis module, pore inclusion analysis module, expanded version of pore/inclusion analysis module, fiber composite material analysis module, expanded version of pore/inclusion analysis module, manufacturing geometry correction module, volume grid calculation module, structural mechanics simulation module, transfer field simulation module and other functions are optional. | |
| * Specifications are subject to change without notice, All trademarks are the property of the system maker. | |
X-Ray Images:
