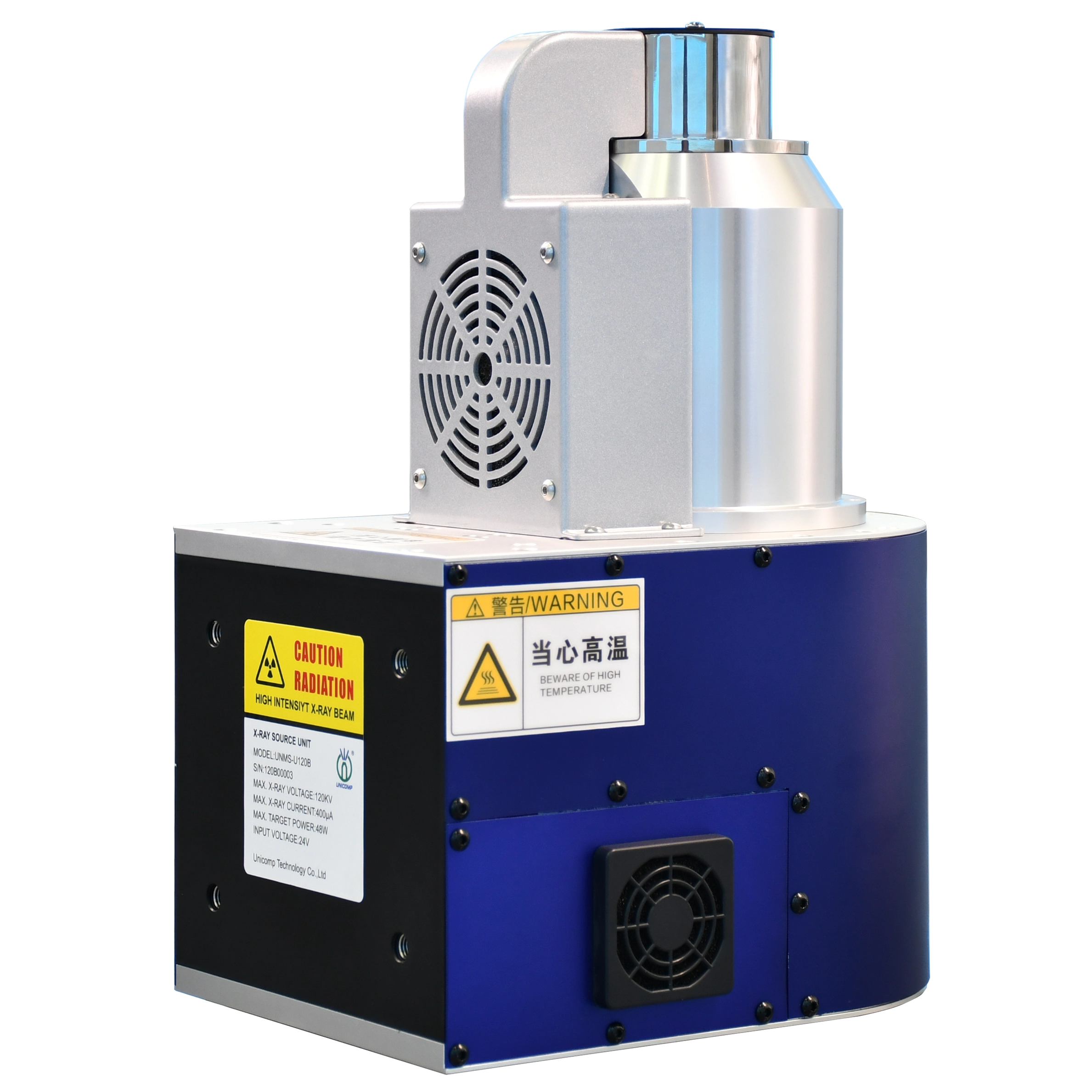

UNMS-U120B
UNICOMP
UNMS-U120B is a closed tube 120 kV Microfocus X-Ray Source using hot cathode technology, digital control and 100% domestic raw materials.It has the advantages of small focal spot size, high magnification, stable X-Ray emission, higher output power and strong penetration ability.It is very suitable for imaging applications with high resolution and high penetration.
Key Parameter
Max. Tube Voltage: 120kV
Max. Tube Power: 48W
Min. Spot Size: ≤7μm
Beam Angle: 115±3°
Applications
Integrated Circuit Package
SMT, PCBA Electronic Manufacturing
IGBT Substrate / Module
EV Battery
Specification
| Operating Tube Voltage Range | 40-120 kV |
| Operating Tube Current Range | 0-400 μA |
| Maximum Tube Power | 48W |
| Input Voltage (DC) | 25±0.5V |
| Power Consumption | Less than 150W |
| Window Material/Thickness | Be/0.51mm |
| Window Diameter | 38mm |
| Beam Angle | 115±3° |
| Target Material | Tungsten |
| FOD | 10±0.5mm |
| Weight | Approx. 13kg |
| Safty Interlock | External Short-circuit |
| Control Connection | Digital control |
| Operating Mode | Continuous |

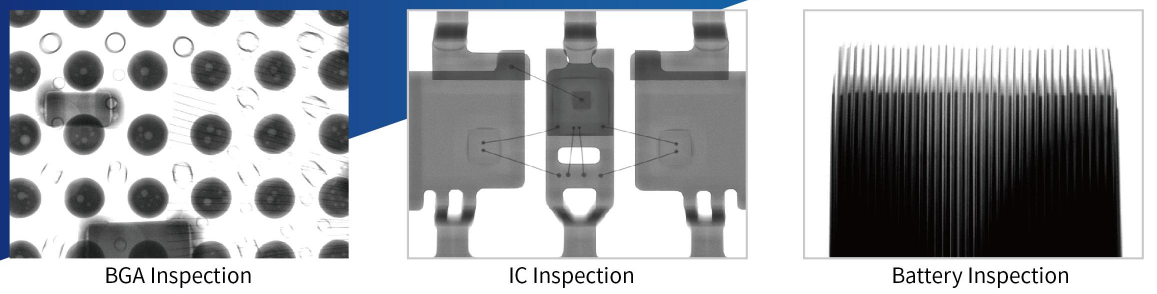

X-ray Images

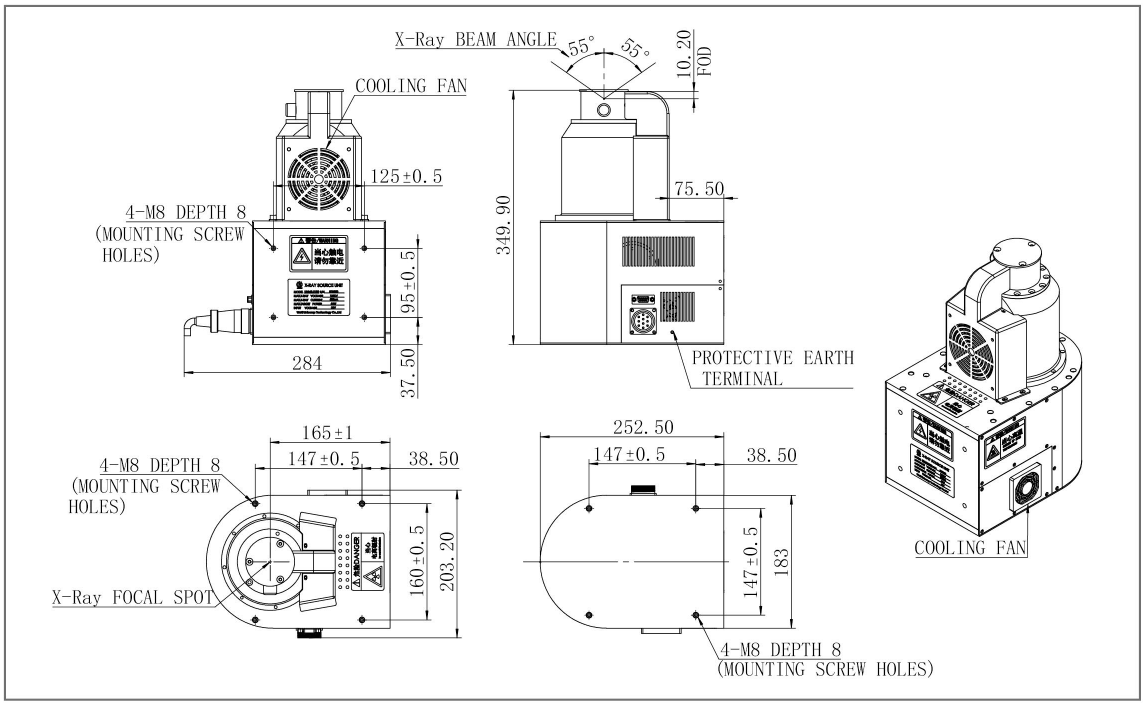

Footprint
