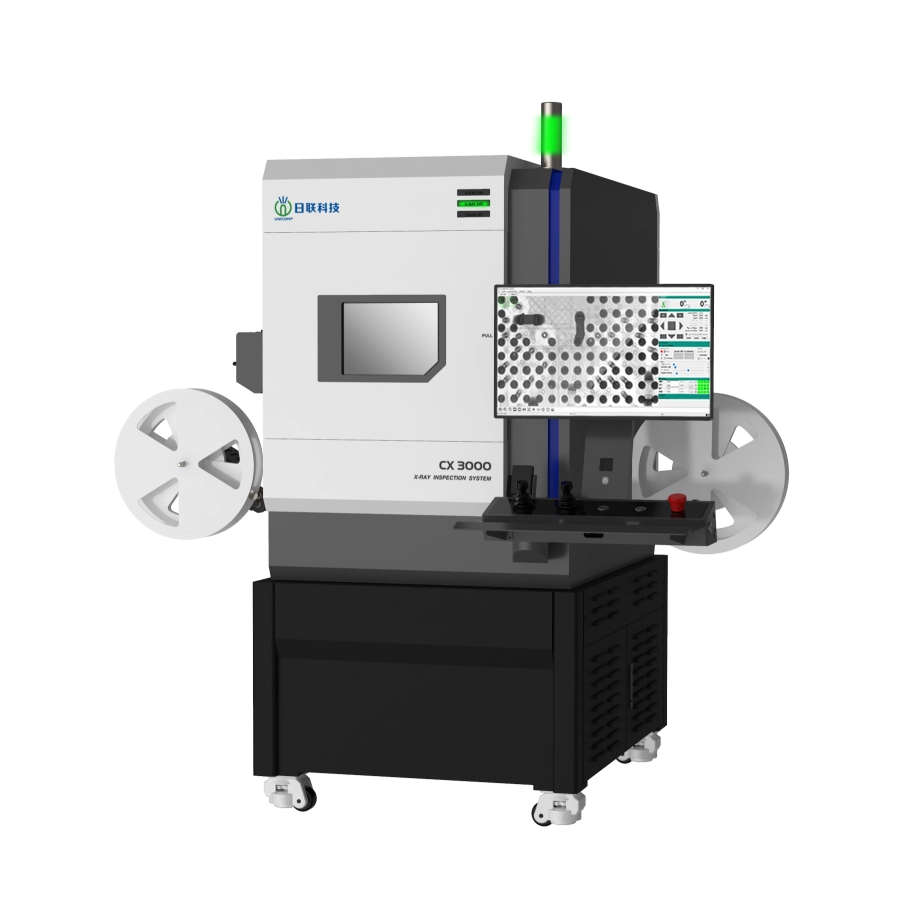

CX3000
UNICOMP
Widely applied for Electronics components in Tape & Reel, JEDEC Tray and Tube package, PCBA, BGA, CSP, Flip Chip, LED, Fuse, Diode, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Aerospace Components, Photovoltaic Industry, etc.
Application Fields
Functions and Features
Inspection Images
System Summary | |
Footprint | 800(L)×870(W)×1550(H)mm |
Machine Weight | 600 kg |
Power Supply | AC 110/220V, 50/60Hz |
Plywood Packing Size | 1650(W)×1300(D)×2050(H)mm |
Packing Weight | 880kg (include desk) |
Power Consumption | 1.0 kW |
X-Ray Tube | |
Tube Type | Sealed |
Max. Power | 8W |
Voltage | 0~90kV (Adjustable) |
Focus Spot Size | 5μm |
Imaging Detector | |
Detector | Flat Panel Detector (FPD) |
Pixel Size | 84μm |
Effective Detection Area | 130*130mm |
Frame Rates | 20fps |
Pixel Matrix | 1536*1536 |
System Magnification | 200X |
Software | |
Auto-measuring | Internal defects of electronic components, PCBA welding quality Auto-measuring and Support Data/Graphic Output |
Multiple Measuring Tools | Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc. |
Real-time Display | Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc |
Navigation | Navigation in Visual Windows |
User Friendly | Automatic conveying of reel to reel components, Easy Operation and User Friendly |
Motion Control System | |
Movement Control | Keypad & Mouse |
Max. Loading Area/Weight | 300*350mm / 5kg |
Max. Inspection Area | 255*330mm |
Manipulator | 3-axis with X / Y / Z |
Accessory | Reel to Reel(Standard:22mm tape, Option: 44mm) |
Industrial PC | |
Monitor | 22’’ FHD LCD Display |
System OS | Windows 10 64bit |
Hard disk | 1TB |
RAM | 8GB |
CPU model | Intel i7 Processor |
Other Features | |
Energy Saving | X-Ray Auto-off when it's out of work over than 5 minutes |
Safety Operation | Electromagnetic Interlock and warning Light |
Authority Management | Fingerprint Access Management System, and Support Password Accessing |
X-Ray Safety | <1μSv/h (Meets All International Standards) |
Work Desk | Included |
NG Marking | Automatical NG Marking for Non Conformity |
* Specifications are subject to change without notice, All trademarks are the property of the system maker.
