AX8300MAX
UNICOMP

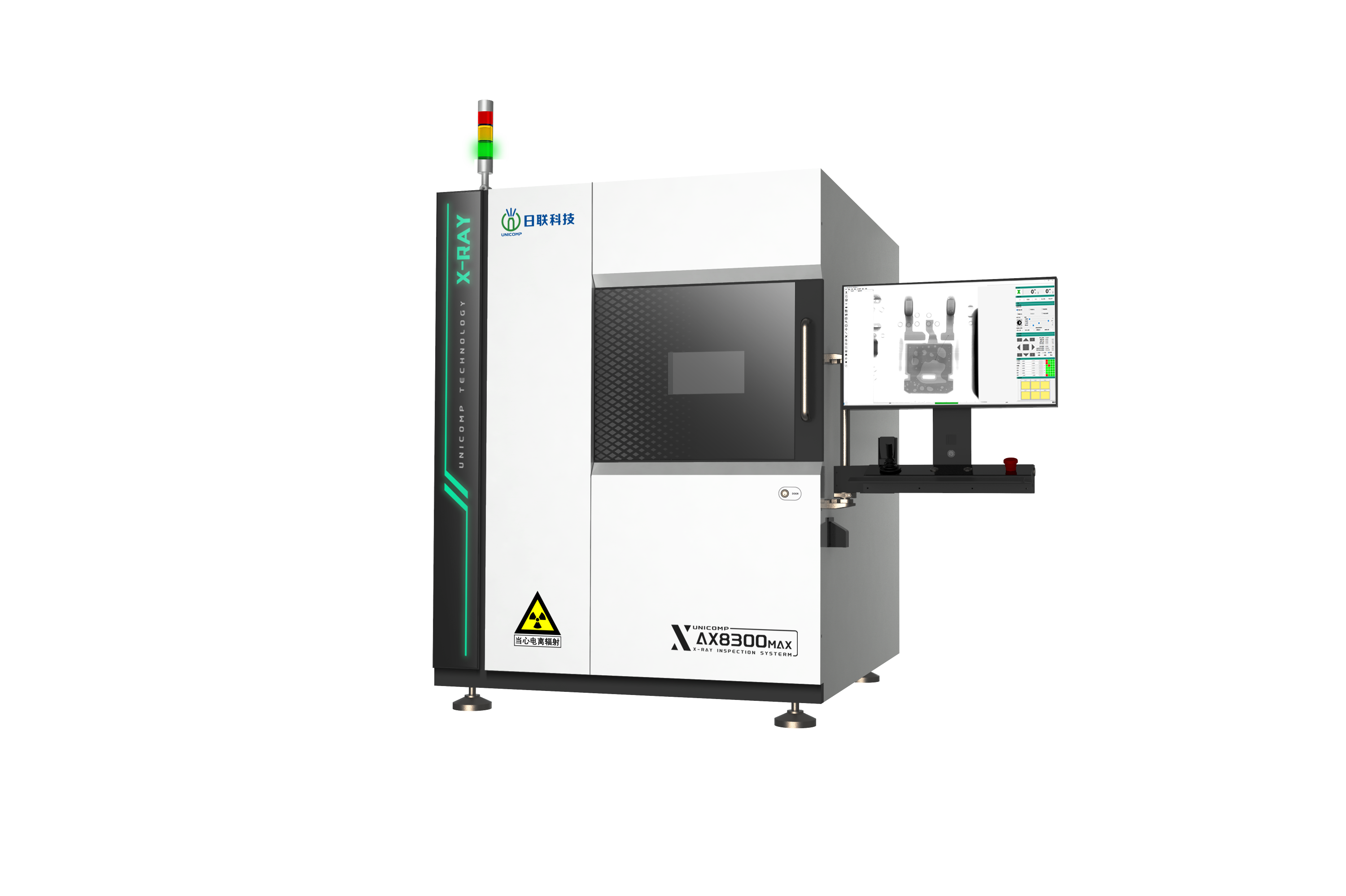

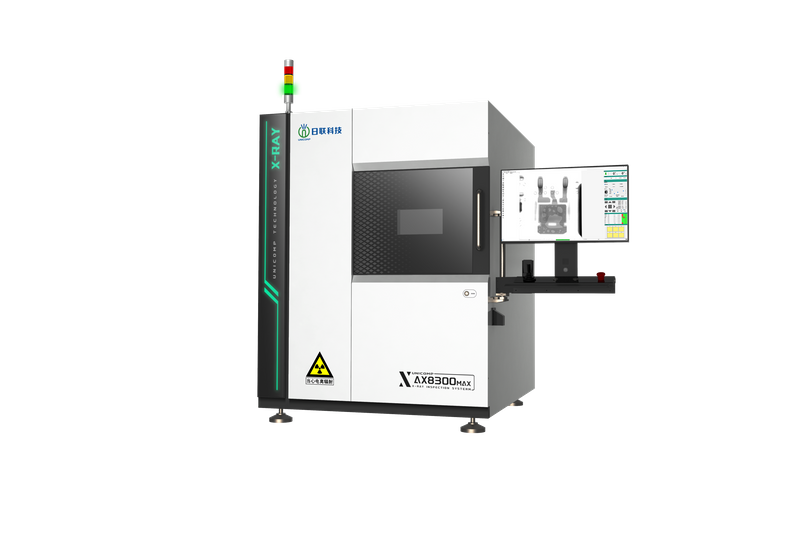

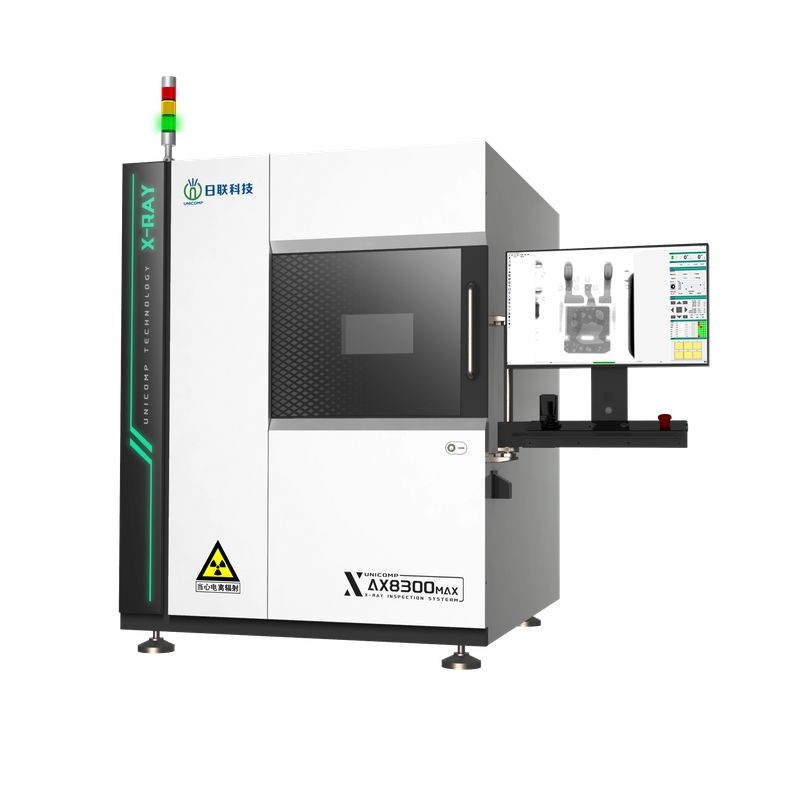

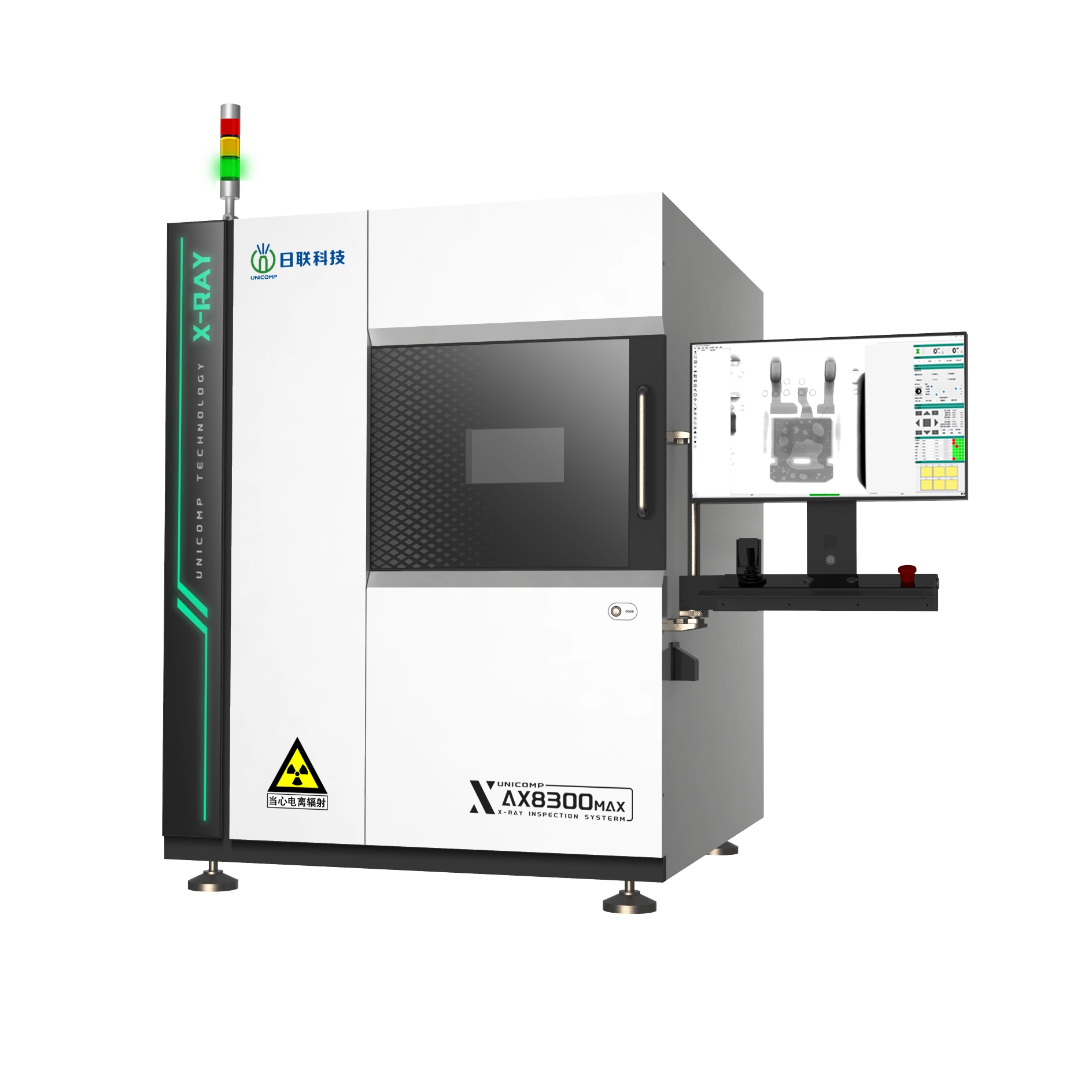

X-Ray Inspection Equipment AX8300MAX
| System Summary | |
| Footprint | 1280(W)×1500(D)×1700(H)mm |
| Machine Weight | 1525 kg |
| Power Supply | 220V±10%, 50/60Hz |
| Power Consumption | 900W |
| X-Ray Tube | |
| Tube Type | Sealed |
| Max. Power | 25W |
| Voltage | 110kV |
| Focus Spot Size | 5μm |
| Imaging System | |
| Detector | Flat Panel Detector |
| Pixel Size | 84μm |
| Effective Detection Area | 129*129mm |
| Frame Rates | Max30fps |
| Pixel Matrix | 1536*1536[pixel] |
| Geometric Magnification | 47.7X |
| Motion Control System | |
| Movement Control | Joystick, Keypad & Mouse |
| Max Payload size | φ545mm |
| Max.Detection size | φ545mm |
| Oblique Views | Max. ±60° |
| Table | Horizontal rotation 360° |
| Industrial PC | |
| Monitor | 27’’HD 4K Display |
| System OS | Windows 11 64bit |
| Hard disk | 1TB |
| RAM | 16GB |
| CPU model | Intel i7 Processor |
| Other Features | |
| Energy Saving | X-Ray Auto-off when it's out of work over than 5 minutes |
| Safety Operation | Electromagnetic Interlock and warning Light |
| Portable Design | Mounted with Wheels on Machine Bottom |
| X-Ray Safety | <1μSv/h (Meets All International Standards) |
| * Specifications are subject to change without notice, All trademarks are the property of the system maker. | |
Application
Lithium battery pole piece solder joint defect detection,
Lithium battery batteries coiling case detection,
BGA, CSP , LED , Flip Chip , Semiconductor,
Battery Industry，Small Metal Casting，
Electronic Connector Module,
Aerospace Components , Photovoltaic Industry，
Other Special Industries.
Features
●Large Size Inspection Table, Laser Locator for Precise Location
●±60° Oblique Views Table
●Pseudo 3D Function
●CNC Programming, Automatic BGA Voids Measurement, Results Can be Exported
●Mark Irregular Graphics
●Safety Electromagnetic Interlock

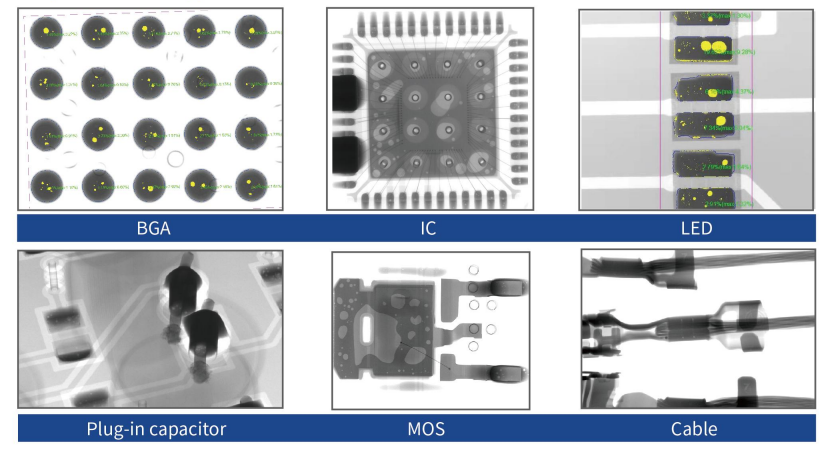

X-Ray Images

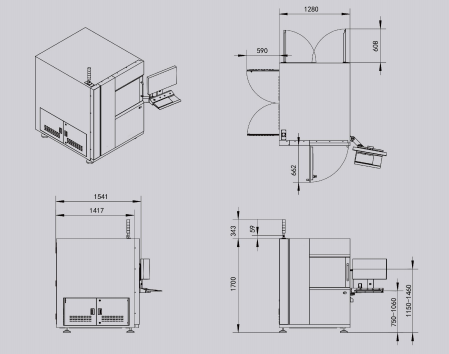

Dimensions and Appearance
