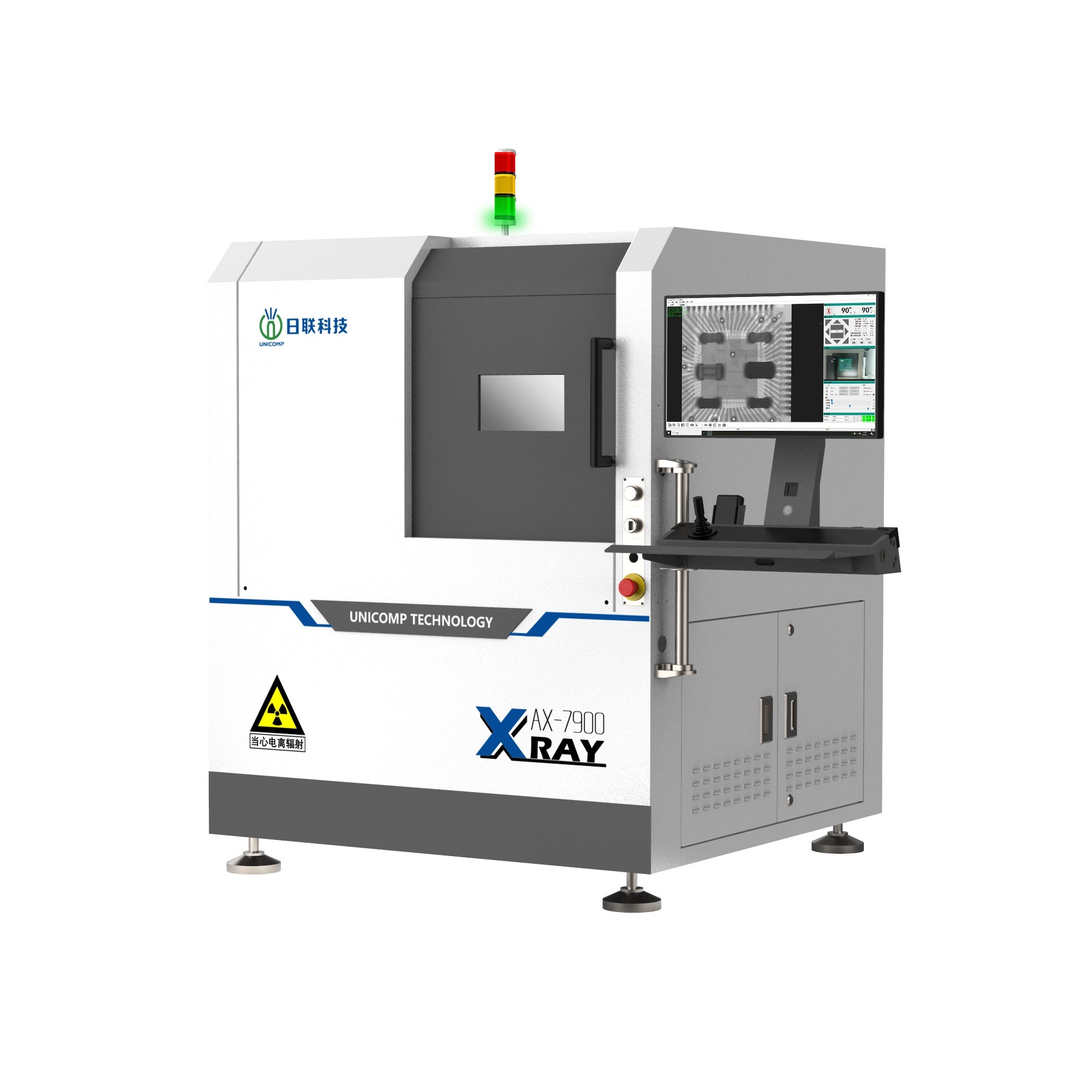

AX7900
UNICOMP
Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Photovoltaic Industry, etc.
Application Fields
SMT/PCBA
Semiconductor
Lithium Batteries
LED
Photovoltaic
Functions and Feature
1. Large Size Inspection Table,Laser
Locator for Precise Location
2. Accurate Control, CNC Programming
Automatic Positioning
3. FDP Tilting ±25
4. Safely Electromagnetic Interlock
5. Fingerprint Access Management System
6. Real-time Monitoring of Radiation
Inspection Images
System Summary | |
Footprint | 1280(W)×1220(D)×1615(H)mm |
Machine Weight | 1100 kg |
Power Supply | AC 110/220V, 50/60Hz |
Plywood Packing Size | 1800(W)×1400(D)×1800(H)mm |
Packing Weight | 1250 kg |
Power Consumption | 1.0 kW |
X-Ray Tube | |
Tube Type | Sealed |
Max. Power | 8W |
Voltage | 0~90kV (Adjustable) |
Focus Spot Size | 5μm |
Imaging System | |
Detector | Flat Panel Detector (FPD) |
Pixel Size | 85μm |
Effective Detection Area | 129*129mm |
Frame Rates | 20fps |
Pixel Matrix | 1536*1536mm |
System Magnification | 600X |
Software | |
Auto-measuring | BGA Soldering Voids Auto-measuring and Support Data/Graphic Output |
Multiple Measuring Tools | Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc. |
CNC Mode | CNC Programmable Inspection, Easy Operation and User Friendly |
Real-time Display | Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc |
Navigation | Convenient Target Point Positioning System |
Motion Control System | |
Movement Control | Joystick, Keypad & Mouse |
Max. Loading Area/Weight | 520*420mm / 10kg |
Max. Inspection Area | 460*400mm |
Tilting Angle | ±25° |
Manipulator | 5-axis with X / Y / Z1 / Z2 / T |
Industrial PC | |
Monitor | 24’’FHD LCD Display |
System OS | Windows 10 64bit |
Hard disk | 1TB |
RAM | 4GB |
CPU model | Intel i7 Processor |
Other Features | |
Energy Saving | X-Ray Auto-off when it's outof work over than 5 minutes |
X-Ray Safety | <1μSv/h (Meets All International Standards) |
Authority Management | Fingerprint Access Magnagement System, and Support Password Accessing. |
Safety Operation | Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor |
* Specifications are subject to change without notice, All trademarks are the property of the system maker.
Dimensions and Appearance
